enik-engine is a C++ game engine I've been building from scratch over the past few years.

What began as a weekend experiment slowly turned into a full engine with an editor, scripting, physics, animation, and more.

The whole point was to explore low-level systems programming, not to compete with Unity, Unreal, or Godot. I wanted something small, fast, and fun to build.

The real joy of this project was speed: hot reloading made iteration almost instant, so I could try things out as soon as I wrote them.

Under the hood

enik-engine is written in C++.

• GLFW for windowing
• GLM for math
• Dear ImGui for the editor interface
• EnTT for the ECS
• Jolt for physics
• Tracy for profiling
• yaml for saving/loading data

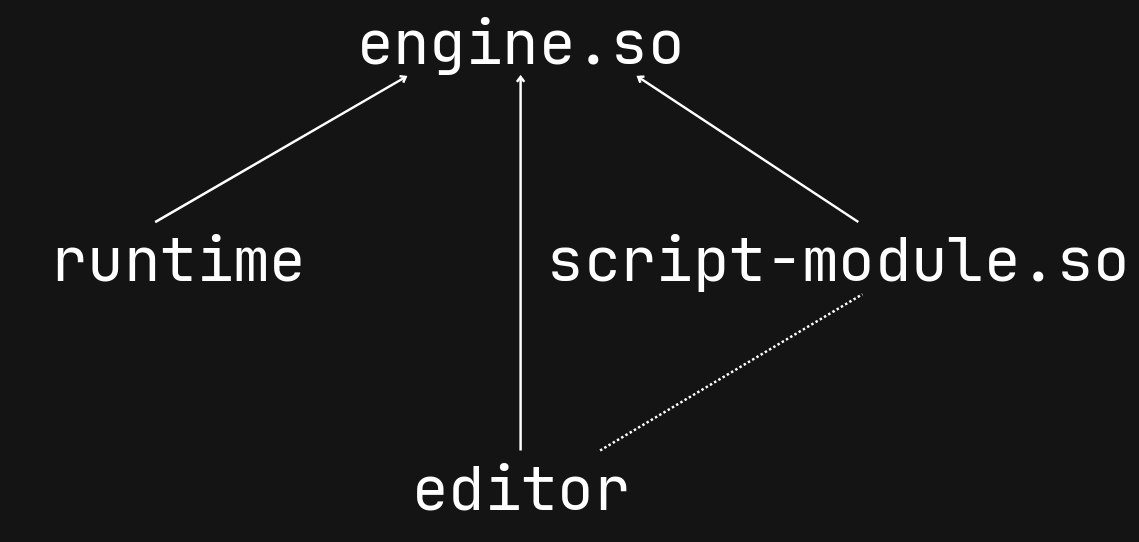

Architecture

enik-engine is built for a fast development cycle.

The core engine is a dynamic library, shared by both the editor and the game. Game code is compiled separately as a script module that the editor links at runtime.

This setup makes hot reloading possible: you can recompile the game code and reload it in the editor without restarting.

Scripting system

Live hot reloading

Hot reloading C or C++ code is not easy, especially if what you are reloading is complex. Many engines require complicated systems, and Unreal for example, often needs full rebuilds just to stay stable.

enik-engine does something unusual. The game is running, update functions are being called every frame, and on the next frame, the new module is already loaded and running, just by replacing the module. It should not work.

IT LIVE HOT RELOADS. ON THE FLY.

Seeing changes applied live, while the game continued running, was unbelievable. It was consistent, seamless, and crashed less than Unreal. I developed all my games using this system.

The editor replaced the module and its instantiation functions, yet the game state remained intact and the new functions ran immediately. The module was replaced exactly as before, and the functions line up. How was the data still preserved? It boggled my mind. Because it worked consistently, I didn't investigate further and just used it as a killer feature.

What happened to live hot reload

I don't know. It just vanished. It still hot reloads, but now you need to stop the game and press play again. The editor itself doesn't require a restart, which is still convenient. Still hot but not live hot.

When writing this post, I considered investigating why it worked, but it doesn't anymore.

My best guess is that a Linux update changed the dynamic linkers behavior. If anyone has any idea about how that was happening, or why it stopped working, I'd love to hear it.

Scripting

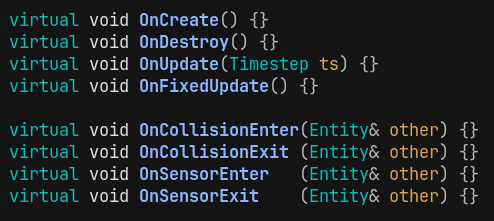

Scripting is done by inheriting from the ScriptableEntity class and registering it. It holds an Entity ID and some callback functions like OnCreate and OnUpdate.

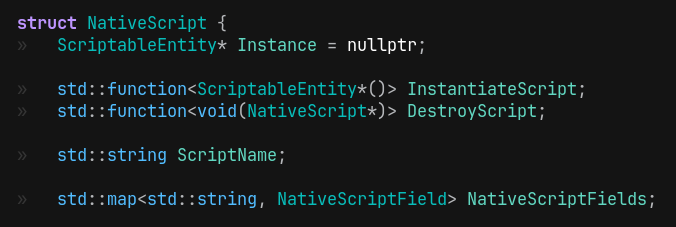

This class can be attached to an entity through a NativeScript component.

The instance is created by the engine when the Entity is created.

Fun fact: I didn't know about tagged unions, so I reinvented them:

yes I managed the memory manually please don't look

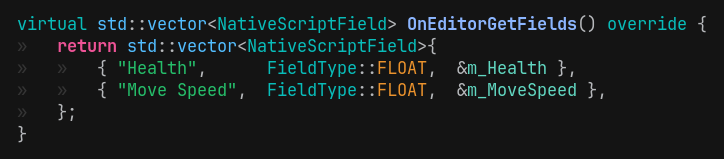

The editor can show these fields in the inspector by calling OnEditorGetFields. This can be implemented by the developer in their class derived from ScriptableEntity.

The instance must exist before we are able to call this function. So we create a temporary instance when binding the script, and save the fields to the NativeScript component's map. When the real instance is created, we copy the saved values from the map to the new instance.

Editor

enik-engine has a custom editor built with Dear ImGui. I worked on it more than necessary. I love bike shedding unfortunately.

Inspector

Inspector shows the entities components and values. It can also show any fields exported by the ScriptableEntity.

Of course I spent too much time working on the inspector so it includes all the 'nice to have' features like drag&drop and Asset buttons.

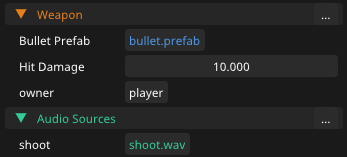

Colors

Assets and components are color-coded for quick identification.

Tabs

While using Unity, the interface made me feel claustrophobic. When you need to check something in another scene, you have to find that scene, open it, check what you need, then go back to the first scene and open it again. Your file browser may also be in a different place, forcing you to browse again

I used Unreal for a little bit and I loved the tabbed interface. So I stole it. In my engine you can open multiple scenes or prefabs or assets in tabs.

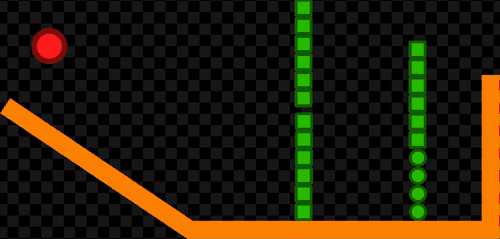

Physics engine

I followed the Designing a Physics Engine in 5 minutes video and created my own 2D physics engine, which I used for the first few games I made with the engine.

I wanted to add 3D to the engine and I needed to support 3D physics. So I decided using a proven physics engine would be better, since I doubt I could make a performant physics engine in a short time.

I chose Jolt Physics, which was an experience... Talked about it here: My experience with Jolt Physics

Prefab system

Prefabs are almost essential in an engine that is primarily used through an editor. Because creating an configuring entities take more time.

I implemented prefabs like scenes in terms of serialization. A prefab is just a scene file with only one root entity.

I wish it was that easy...

We face a few problems: What to do with IDs? How to handle references? We cannot keep IDs in the prefab because multiple instantiations would collide. If we randomize the ID's, then the references between the entities inside the prefab does not work.

To solve this, we randomize the ID we find, but when we encounter the same ID, we assign the same randomized ID to it. This both randomizes the ID's and preserves relationships.

Overrides

Even though it is a prefab, we should be able to override some of its values. Like its Transform and Family components. Otherwise every instance would appear in the same place with the same hierarchy.

This means we need to instantiate the prefab first, then override some of its values with data from the scene.

Defaults

If all values were overridden, updating the prefab globally wouldn't work. The point of a prefab is to allow centralized updates.

How should we handle it? Do we need to keep a pure instance of the prefab around and check each value? Do we only save the edited values? These would mean changing the whole system to track changes and stuff.

How did I handle it? I only allow overrides of the Transform and Parent from Family. It's limited, but it worked well enough.

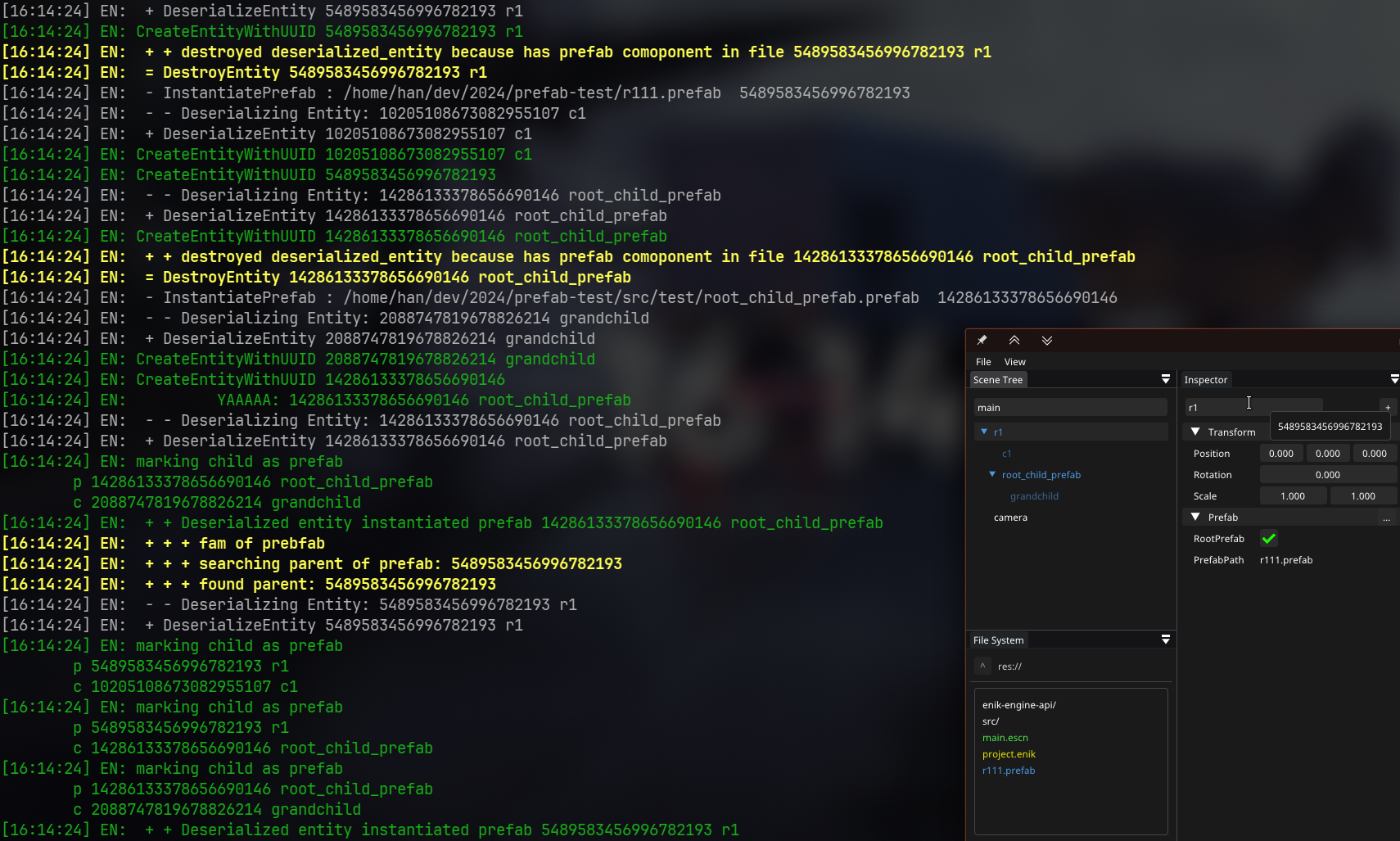

Nested prefabs

We need to be able know if the entity we created and are deserializing currently is a prefab. If it has a Prefab component, we delete it and instantiate the prefab it points to.

To avoid recursively instantiating the original root prefab, we mark it as RootPrefab.

This took time...

Asset System

Assets in enik-engine are shared. Each asset is referenced using an AssetHandle, so multiple systems or entities can use the same resource without duplicating it. The AssetManager takes care of loading, storing, and tracking assets for the engine.

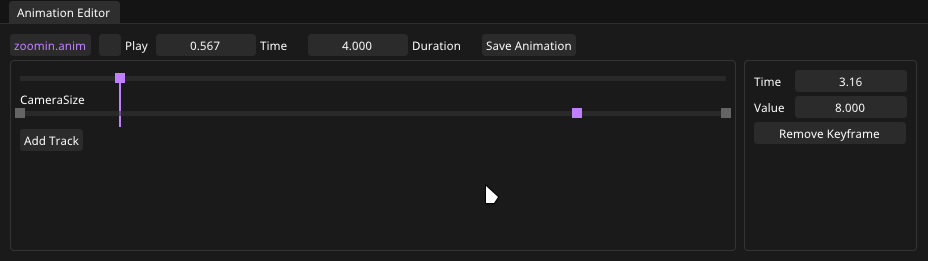

Animation system

Since I was preparing the engine for a game jam, and had very little time, I have implemented a bare bones animation system. It is basically a value interpolator.

An Animation is a list of Tracks that are played simultaneously.
A Track contains a TrackProperty and a list of Keyframes.
Each Keyframe stores a time point and a value.

It doesn't get the properties each frame, it relies on a value pointer. I think you can see what kind of problems it can create. And it did deliver! It made me bang my head to the wall a lot in the game jam!

Property pointers meant that if an entity gets destroyed, and the ECS reorders the component arrays, we have a beautiful dangling pointer in our hands.

How did I solve this issue at the game jam?

I did what's called a "pro game developer move". I just didn't destroy any entity. I teleported the ones I wanted gone to infinity.

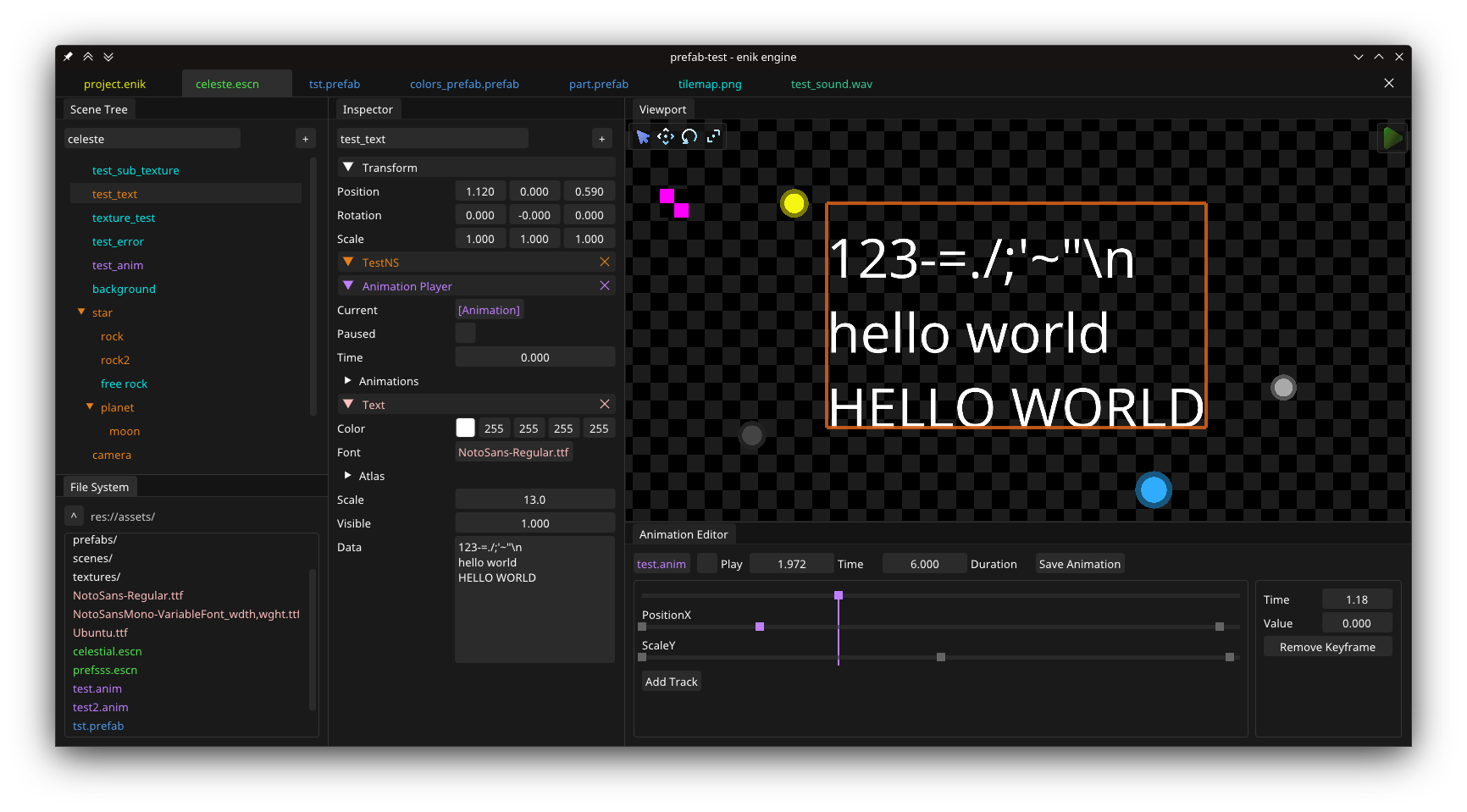

Text rendering

I used stb_truetype to import the font, pack it to an atlas, and save the glyphs into an asset.

Text is rendered using the atlas, so drawing strings is just fetching the right glyphs and drawing quads.

Audio system

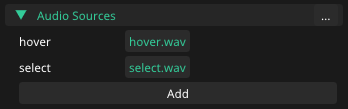

For audio, I kept it simple. I used miniaudio to play WAV files.

It doesn’t have 3D spatialization, modulation, or fancy effects. I just needed it to exist for the same game jam where I implemented the animation system.

It works reliably and is enough to play sounds, music, or simple cues in the engine.

Performance

Performance was good out of the box since the engine isn't as bloated as bigger engines. After adding batch rendering, it became more than enough for my needs. Here we are rendering 100k+ quads for testing:

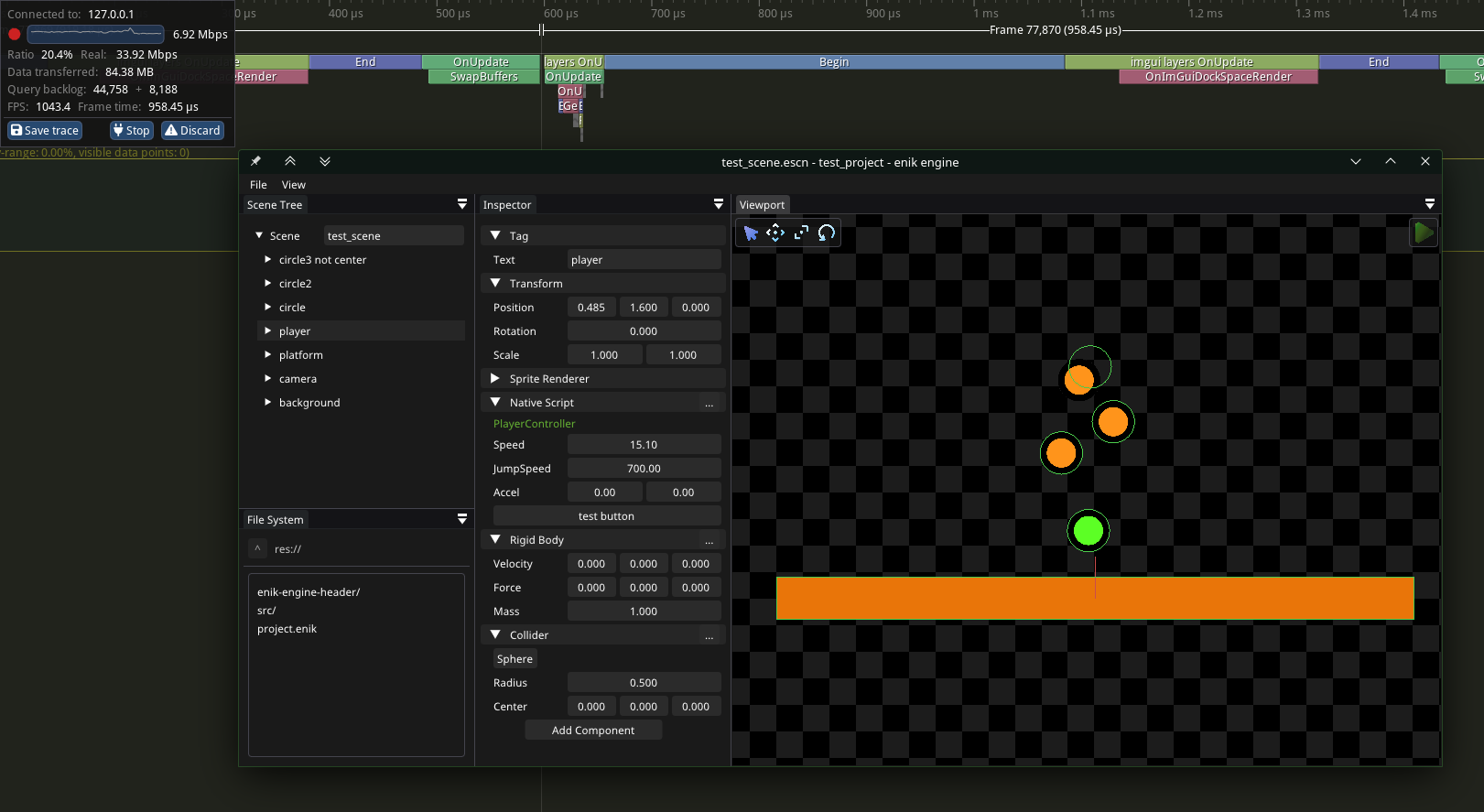

Profiling

Used Tracy for profiling the engine.

Your first enik-engine project

Clone the repository with submodules using the --recursive flag:

git clone --recursive https://github.com/hanion/enik-engine
cd enik-engine

Build the engine and its dependencies:

./build.sh
# or alternatively:
mkdir build && cd build
cmake ..
cmake --build .

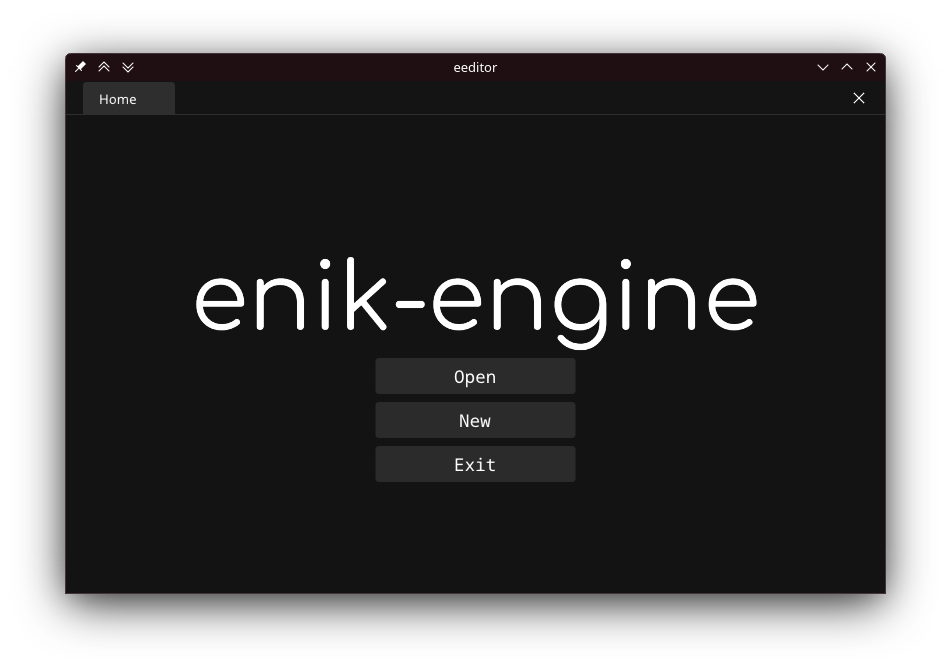

Open the editor:

./build.sh run
# or alternatively:
./build/editor/editor

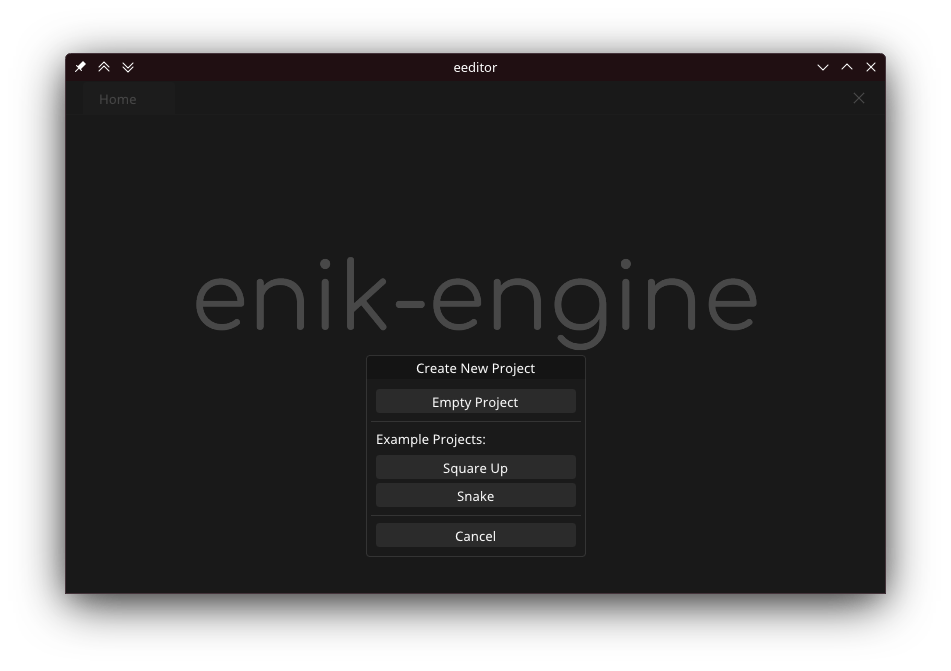

Press New -> Project and select Empty or Example project.

Select an empty directory for the project to be created. Build your game, or play around with example projects.

Export the project:

./export.sh platform game-title /path/to/project/

Ensure the directory contains a project.enik file before exporting.

Exported project files are located in: enik-engine/export/platform/game-title

You have built your first project in enik-engine! Congratulations!

Reflections

Building enik-engine taught me a lot about low-level systems programming, memory, architecture, hot reloading, and GUI design.

I also learned how to structure a project for longevity, mostly by failing at it.

What I would do differently if I built it again

• Focus on core features (avoid features I thought I might need)
• Cut unnecessary abstractions (renderer was abstracted but only OpenGL used)
• Reduce compile times (maybe avoid C++)
• Avoid C++ templates (debugging is a nightmare)
• Consider using plain C instead of C++
• Avoid smart pointers, use arenas instead
• Reduce third-party libraries (more fun to reinvent the wheel)
• Less perfectionism, more pragmatism
• Don’t fear things I haven’t tried (like text rendering)
• Too many API interfaces (preprocessor is good enough)
• Possibly create my own ECS
• Skip Jolt (stick to my own physics engine or something simpler)
• Avoid spdlog (too many linking issues on Windows)

These are the notes I took while developing it, based on my experiences, and might not fit your situation.

Games made with enik-engine

Source Code

https://github.com/hanion/enik-engine
