I’ve been using my own custom physics engine for a while now, and
it’s been a great learning experience.
I built it from scratch, and it served me well. I even made two
games[1]
with it!
But as my projects grew, I started feeling the need for more advanced features. Plus, I’m planning to move into 3D eventually, and I didn’t want to spend more time expanding my physics engine.
So, I decided to upgrade to Jolt Physics.
Why Jolt?
Jolt is a modern, fast, and open-source physics
engine that seemed like a great fit for my needs. I wanted something
that was well-designed, performant, and extensible, and
Jolt checked all those boxes.
It supports proper angular velocity and 3D physics, which are things my
custom physics engine lacked. Since I eventually plan to move into 3D, I
didn’t want to spend more time expanding my own physics system when Jolt
already provided a solid, ready-to-use solution. Switching to Jolt felt
like the right move to future-proof my engine while also giving me
access to more advanced physics capabilities.
Getting Started with Jolt
The first thing I did was clone the Jolt repository separately and build it to make sure everything worked. No surprises here—it built without any issues.
Once I confirmed that, I added Jolt as a submodule to my engine and integrated it into the build system. Again, no problems.
Next, I started implementing Jolt into my engine. I began by reading the HelloWorld.cpp file that comes with Jolt.
Honestly, this file is a goldmine. It’s a great starting point, and the comments are super helpful.
I copied some of the setup code, even though I didn’t fully understand everything at first. I figured I’d get to that later. For now, I just wanted to get something working.
Re-architecting My Components
My custom physics engine was simple but effective. It had a Collider and RigidBody component and used Euler integration to handle forces, acceleration, velocity, and position.
It worked well for 2D, but it was limited in several ways. There was
no support for angular velocity, and it couldn’t handle a third
dimension.
Jolt, on the other hand, is a full-featured physics engine, so I had to
rethink my architecture to take advantage of its capabilities.
My first attempt at restructuring didn’t work out, but after some trial
and error, I settled on a model that felt clean and intuitive.
The Architecture
When I started integrating Jolt into my engine, I knew I needed to
rethink my component structure to align with Jolt’s approach to physics
bodies.
Jolt defines three primary types of bodies:
- Static Bodies – These bodies don’t move or simulate
in the physics world. They are used for immovable objects like walls or
floors that can still collide with other bodies but don’t respond to
forces.
- Dynamic Bodies – These bodies are moved by forces,
such as gravity or collisions, and are fully simulated in the physics
world.
- Kinematic Bodies – These bodies are moved manually by directly setting their velocities, without using forces. They can still interact with other bodies, making them ideal for things like moving platforms or doors.
For more on these concepts, check out the Jolt Physics documentation.
Along with these body types, Jolt provides a sensor flag, which is a
simple checkbox to indicate whether a body should act as a sensor
(detecting other objects but not interacting physically). In my engine,
however, I chose to handle sensors as a flag applied specifically to
CollisionBody
components.
PhysicsBodyBase: The Foundation
At the core of my physics system is the PhysicsBodyBase
struct, which serves as the foundation for all physics bodies in my
engine. This struct holds a pointer to a Jolt body and includes some
basic properties, such as:
- Motion Type – This determines how the body behaves
in the physics simulation. It can be static, dynamic, kinematic.
- Layer – Used for collision filtering. I haven’t fully implemented this yet, but it’s planned for future use.
The PhysicsBodyBase
struct also provides functionality
for getting and setting the body’s position, velocity, friction, and
restitution. It’s designed to be extended by more specific components
like RigidBody
and CollisionBody
.

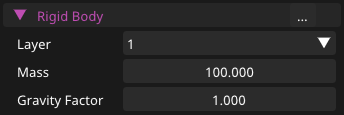

RigidBody: Dynamic Physics Objects

The RigidBody
component inherits from
PhysicsBodyBase
and is specifically designed for
dynamic bodies—objects that are fully simulated and
moved by forces.
It supports applying forces and impulses, which makes it great for things like jumping, explosions, or any kind of physics-based movement. Torque can be applied to rotate the body, and both mass and gravity can be adjusted to control how it reacts to the environment.
In short, RigidBody
component is for anything that needs
to interact dynamically with the physics world.

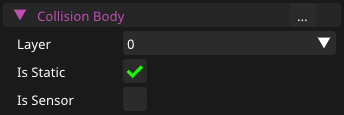

CollisionBody: Simplified Physics Interaction

The CollisionBody
component also inherits from
PhysicsBodyBase
, but it’s used for bodies that either
don’t move or are moved manually.
In my engine, the sensor flag is applied
specifically to CollisionBody
components. A
sensor is a body that doesn’t physically collide with
other bodies but instead detects when something enters or exits its
area. This is useful for things like trigger zones or proximity
detection.
One important distinction in my engine is that only
CollisionBody
components can be sensors, which
means a sensor cannot be a RigidBody
. I decided this
because I didn’t foresee a need for dynamic bodies that only detect
interactions without reacting physically. Therefore, a sensor flag can
only be applied to static or kinematic CollisionBody
components.
For example, a sensor could be used to detect when an object enters a certain area, like an enemy’s detection radius or a trigger for a door to open. This keeps the system simple and ensures that only non-dynamic bodies can act as sensors.
CollisionShape: Defining the Shape of Bodies

Every physics body needs a shape, and that’s where the
CollisionShape
struct comes in. Currently, it supports two
basic 2D shapes: Box and Circle.
In the future, I plan to add more primitive shapes. Right now, there are no 3D primitives in the engine, but once I introduce them, I’ll be able to handle 3D physics shapes.
The most important future feature for collision shapes is composite shapes. Composite shapes allow me to combine multiple primitives into a single body. For example, I could combine several boxes and spheres to create a more complex shape, like a car. Jolt’s documentation shows this is possible, and it’s something I’ll implement in the future. Once composite shapes are in place, each body will look at its child collision shapes, combine them into a single unified shape, and use that for the physics calculations. This will make it easier to create more complex objects.
For now, each body only has one shape, but this approach will evolve to accommodate more complexity as the engine grows.

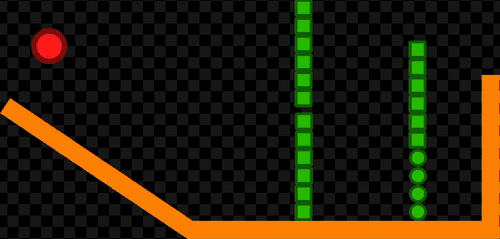

Initial Results
After setting everything up, I was pleasantly surprised by how well everything worked. Jolt’s collision detection is reliable, and integration was smoother than expected. Overall, I’m satisfied with the results so far and how the architecture is shaping up.
What’s Next?
For now, my focus is on perfecting the basics. But there’s plenty
more to explore:
- Composite shapes
- 3D primitives and 3D physics
- 3D rendering
- Later on, soft bodies, joints, and vehicle physics
If you’re considering integrating Jolt into your own engine, I highly recommend it. It offers great documentation, and it’s a reliable and future-proof choice. Whether you’re just getting started or looking to expand your engine, Jolt provides the solid foundation you need to grow. > Go for it.
You can check out the following links for more information:
- Jolt Physics: https://github.com/jrouwe/JoltPhysics
- My Game Engine: https://github.com/hanion/enik-engine
[1] These two games were made during game jams and are available on itch.io: reborn and gear gambit.
